Membrane lined gutters

Trimform Raintite® Insulated Gutters

Raintite® Composite & Single Skin Gutters

Trimform membrane lined insulated Raintite® composite gutters and Raintite® single skin gutters create a fully sealed gutter system.

Both gutters are the ideal solution for rainwater management. The gutters use Fatra Raintite® coated metal.

Trimform gutters are fabricated to customer order for valley, boundary wall/parapet and eaves applications.

Stopends, corner sections, outlets, sumps, leaf guards and downpipes etc are available to order

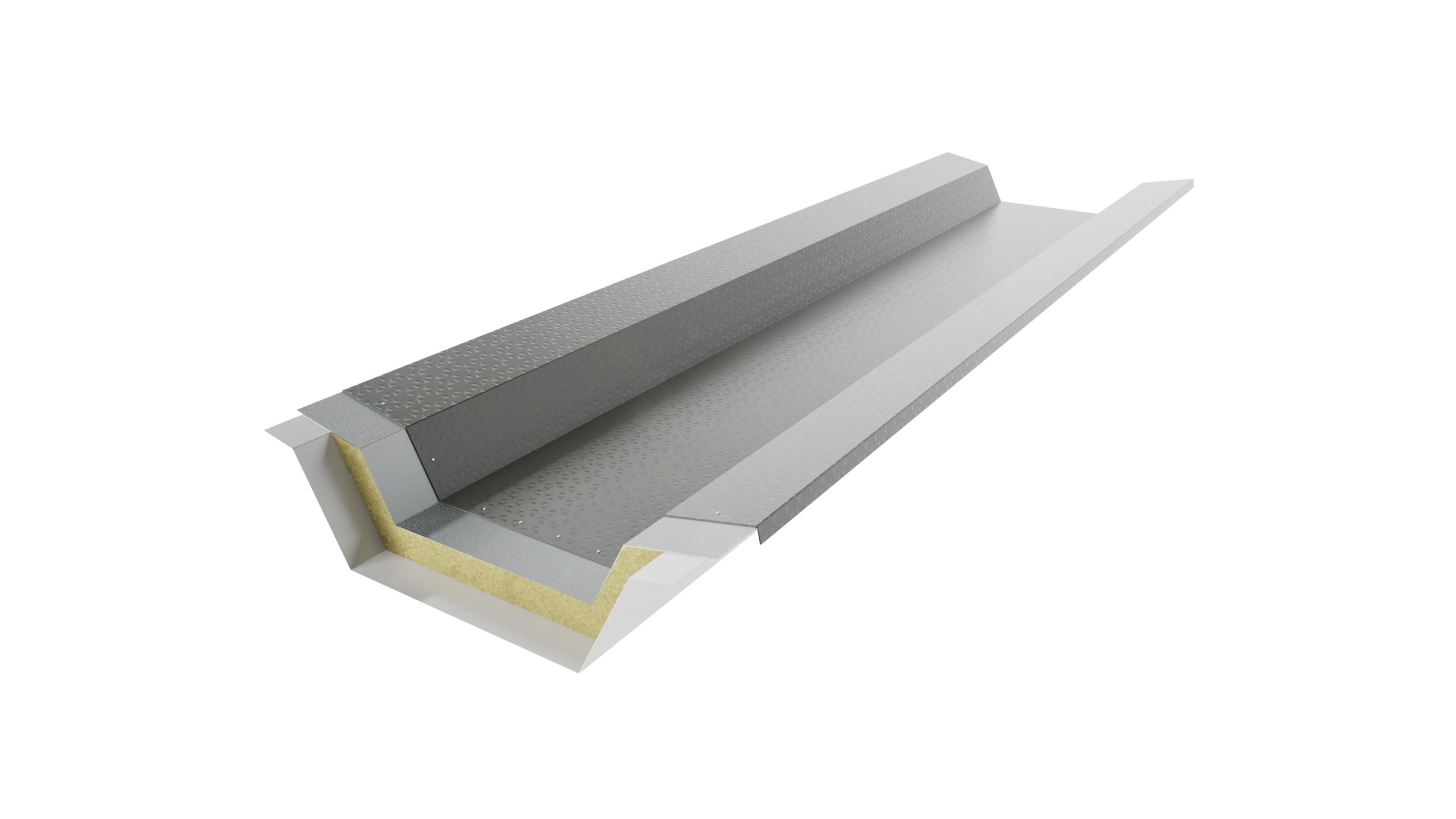

URP Insulated Gutter Render Final

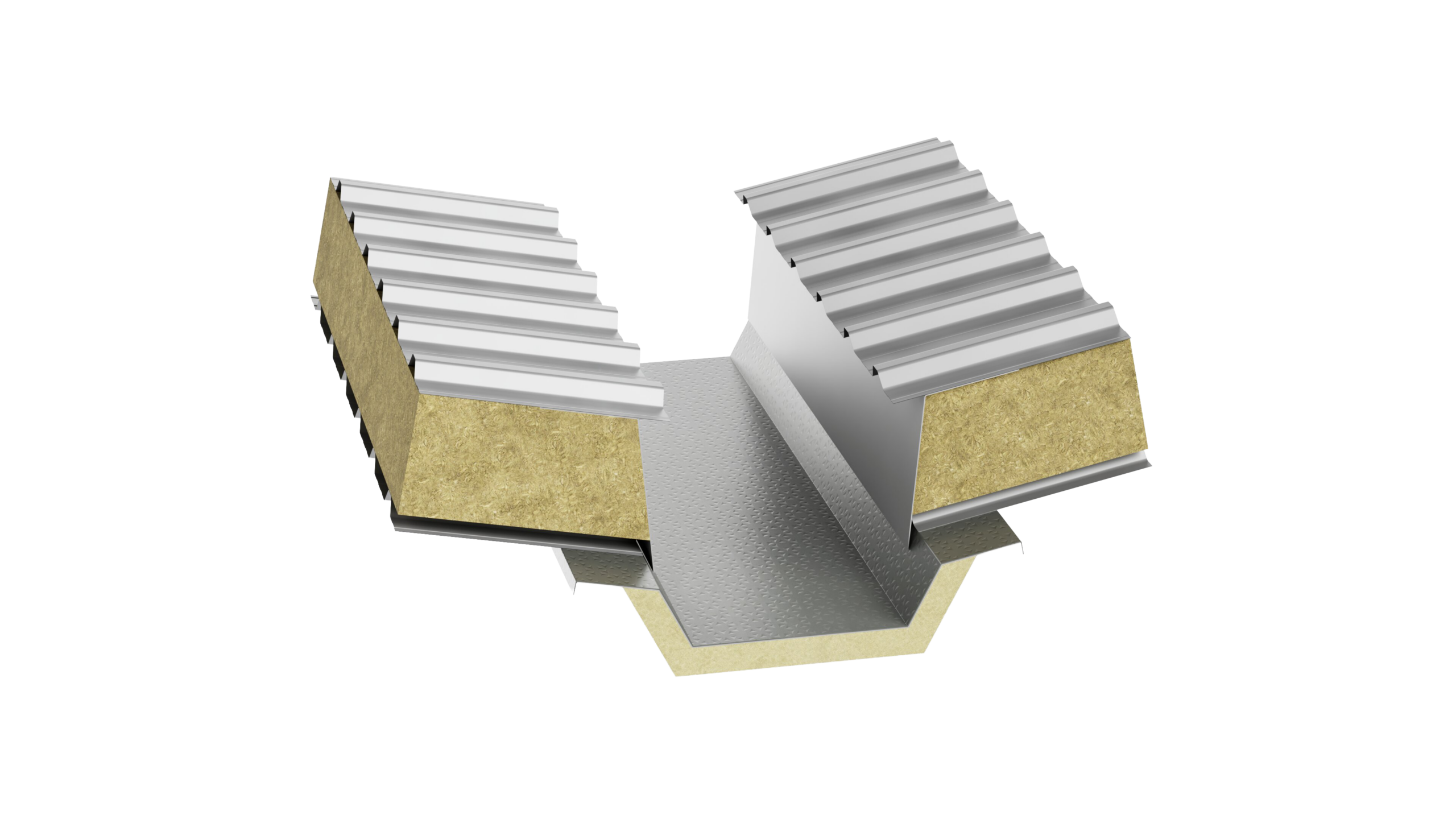

URP Gutter Roof Valley Render Final

Download Trimform Raintite® Insulated Gutter Resources:

Design questionnaire

Raintite® Insulated Gutter Datasheet

Features and Benefits:

  • No bolted joints
  • No reliance on sealants
  • No aluminium expansion issues
  • No need for secondary protection paint.
  • Fully sealed joints (hot air welded)
  • 1.2mm unique slip resistant textured PVC surface
  • 1.2mm Steel substrate
  • Insulated (PIR insulation, rock fibre available)
  • Walkable (when fully fixed)
  • 25 and 35 year guarantees available
  • Approved installers
  • White polyester coated liner
  • Virtually maintenance free
  • Trimform rainwater capacity design calculation service
